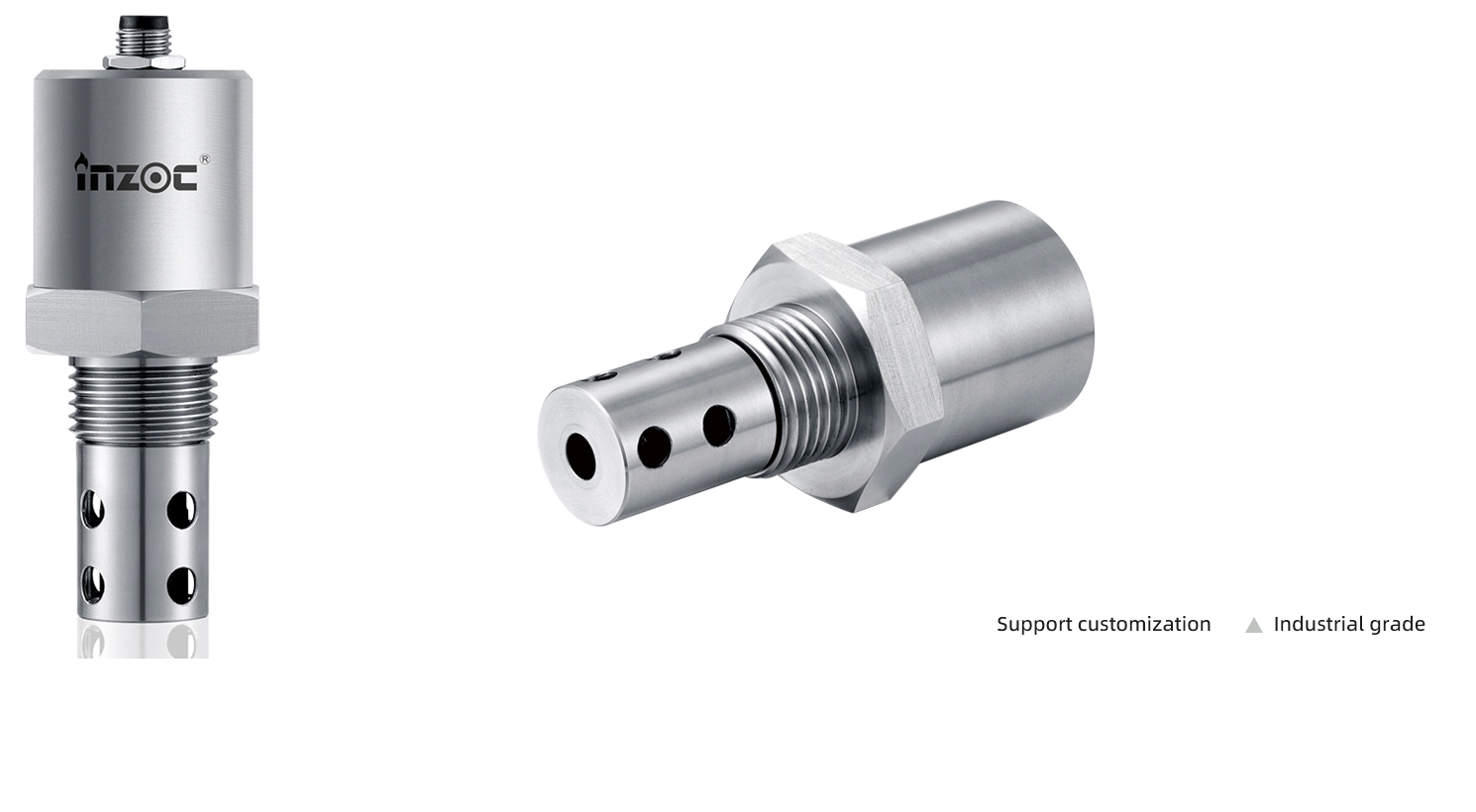

Oil multi-parameter monitoring sensor IFV-7-Oil sensor manufacturers

IFV series multi-parameter oil sensor adopts patented multi-function integrated detection technology, which is the representative product of large range and multi-parameter in the industry It can complete the detection of dynamic viscosity, density, oil quality, moisture content, temperature, saturation and moisture content at the same time Available with internal model data: real-time kinematic viscosity, 40℃ kinematic viscosity, 100℃ kinematic viscosity, viscosity index, conductivity Such as other detection indicators, truly realize the multi-functional small volume integrated comprehensive application multi-functional online monitoring oil sensor. sense The device uses a G1/2 thread interface, suitable for integrated installation in industrial sites, and one sensor completes the monitoring of 7 indicators, including the amount of viscosity Up to 1200cp, with a moisture content range of 0-100%, the sensor achieves high integration, small size, and retains the characteristics of high precision.

Application field：Steel, petrochemical, shield, power, wind power, large equipment, OEM integration

Applicable oil：Gear oil, hydraulic oil, turbine oil, diesel oil, insulation oil

Technical characteristics

High precision, large range, integrated multi-functional integrated application sensor
High flexibility, suitable for different detection indicators and ranges
Industry minimum volume multi-parameter monitoring representative
The data is smooth and reliable under different temperature shocks
Open interface, multi-protocol adaptation, suitable for different device integration

Dimensions and installation

Working Condition

Maximum oil temperature	Oil line pressure	Flow rate of oil circuit	Operating ambient temperature	Highest altitude	Maximum vibration	Maximum humidity
+85℃	0-3Mpa	≤1m/s	-20℃-85℃	5000m	2G	95%

Specificationr

Model selection	Monitoring index	range	precision	Resolution
IFV-7	Dynamic viscosity	high 200-1200CP、low 10-500cp	±3%	0.1cp
	density	600 ～1500 kg. m³	±3%	0.01kg. m³
	temperature	-35～+85℃	0.1℃or±3%	0.1℃
	Trace moisture	0-10000ppm	±10%	1ppm
	Saturation	0-1aw	±0.04	0.01aw
	Moisture content	0-100%	±0.03	0.01%
	Oil quality	1-80	±3%	0.01
Options: real-time kinematic viscosity, V40 viscosity, V100 viscosity, viscosity index, conductivity

The above optional indicators and sensors applicable to any of the models can be configured based on actual requirements

The accuracy corresponding to the above performance parameters is the typical value of 25℃. When the data exceeds the requirements of the system working condition, the data may be biased, and the accuracy will be affected by pressure, flow rate, vibration and other factors.

Electrical properties

Communication interface	Data transmission	power	voltage	weight	Shell material	Cable length	Class of protection
6 core jet jack	RS485/232	≤2W	DC 9V～36V	420G	316L	1.5m	IP65

The above performance indicators are suitable for conventional industrial site installation and use, encounter complex and harsh outdoor environment and changes in fluid properties, customized design according to site requirements.
