IFV3/4/5series

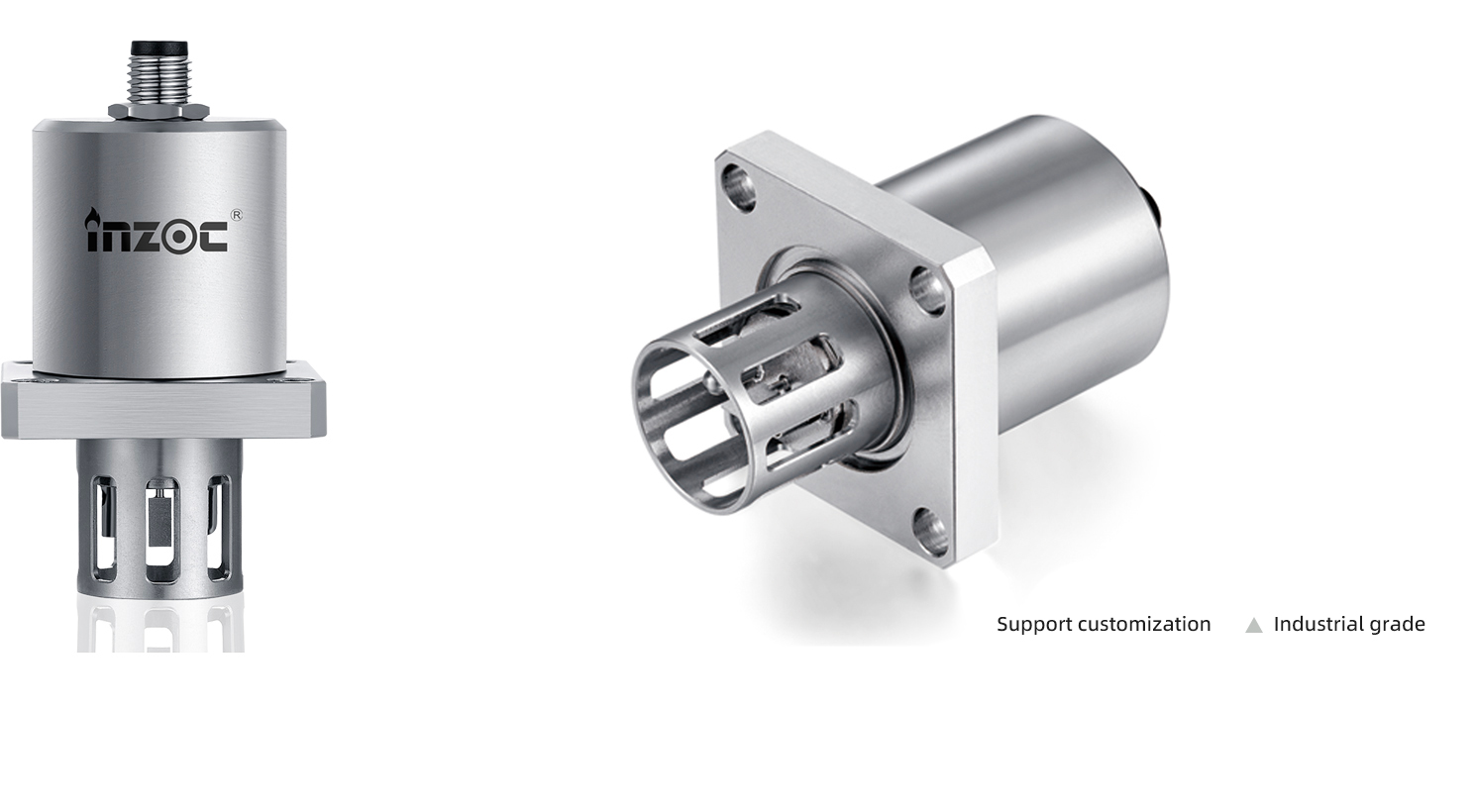

Multi-parameter oil sensor
IFV series multi-parameter oil sensor adopts patented multi-function integrated detection technology, combined with FOS model data and industry leading The back-end data processing module constitutes a large range, high precision, multi-functional oil comprehensive detection sensor, which greatly reduces the on-line Oil monitoring field installation repeated holes and installation controls and other industry problems, is the industry's large range, multi-parameter representative products . The viscosity and density indicators of the sensor adopt the industry's advanced precision resonance mechanism, and the dynamic viscosity detection can reach 1200CP; Inner set The resulting oil quality (dielectric constant), water content, temperature detection structure, can be completed at one time dynamic viscosity, density, dielectric constant Number, moisture content, temperature detection, processing chip equipped with internal model data optional: real-time kinematic viscosity, 40℃ kinematic viscosity 100℃ kinematic viscosity, viscosity index, conductivity and other detection indicators, truly achieve multi-functional, small volume and large integration of comprehensive response Multifunctional on-line monitoring oil sensor.
Technical characteristics
wide-range
Maximum monitoring 1200cp
High integration
Integration of 5 monitoring indicators
High life span
Design life up to 10 years
adaptability
Resistant to high and low temperature shock

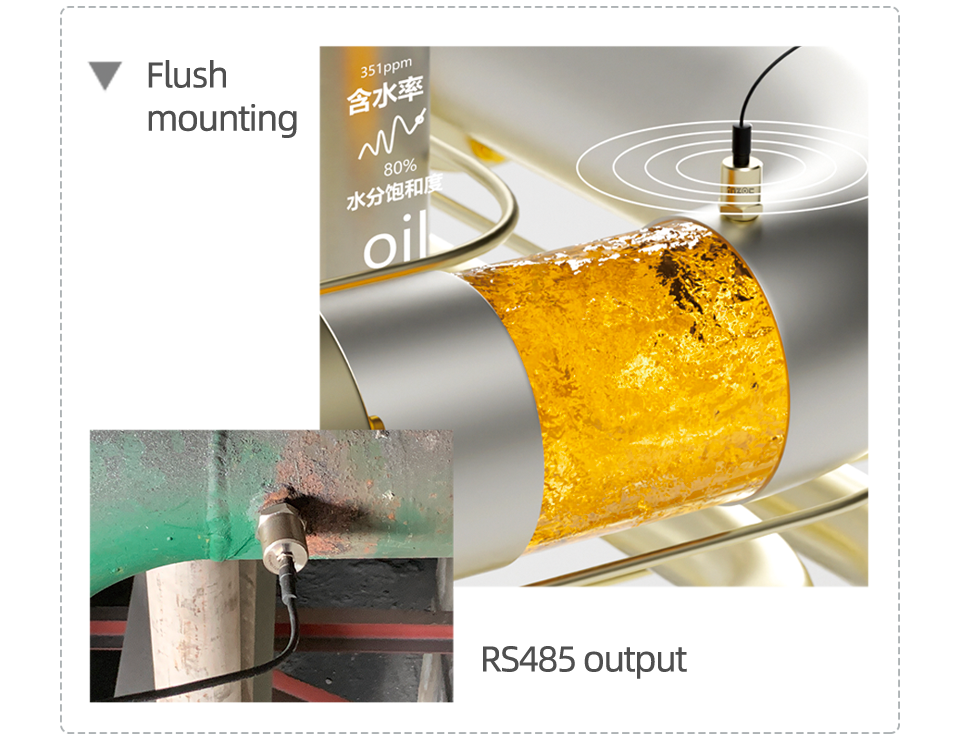

Dimensions and installation
Working Condition
| Maximum oil temperature | Oil line pressure | Flow rate of oil circuit | Operating ambient temperature | Highest altitude | Maximum vibration | Maximum humidity |
|---|---|---|---|---|---|---|
| +85℃ | 0-3Mpa | ≤1m/s | -20℃-85℃ | 5000m | 2G | 95% |
Specificationr
| Model selection | Low viscosity range | High viscosity range | density | temperature | Oil quality （Dielectric constant） |
Moisture content |
|---|---|---|---|---|---|---|
| IFV-3L | 10-500CP | 600 ～1500 kg. m³ | -35～+85℃ | |||
| IFV-3H | 200-1200CP | 600 ～1500 kg. m³ | -35～+85℃ | |||
| IFV-4L | 10-500CP | 600 ～1500 kg. m³ | -35～+85℃ | 1-80 | ||
| IFV-4H | 200-1200CP | 600 ～1500 kg. m³ | -35～+85℃ | 1-80 | ||
| IFV-5L | 10-500CP | 600 ～1500 kg. m³ | -35～+85℃ | 1-80 | 0-100% | |
| IFV-5H | 200-1200CP | 600 ～1500 kg. m³ | -35～+85℃ | 1-80 | 0-100% | |
| precision | ±3% | ±3% | ±3% | 0.1℃ or ±3% | ±3% | ±0.03 |
| Options: real-time kinematic viscosity, V40 viscosity, V100 viscosity, viscosity index, conductivity | ||||||
The above optional indicators and sensors applicable to any of the models can be configured based on actual requirements
The accuracy corresponding to the above performance parameters is the typical value of 25℃. In the case of exceeding the requirements of the system working condition, the data may be biased, and the accuracy will change according to the pressure, flow rate, vibration and other data.

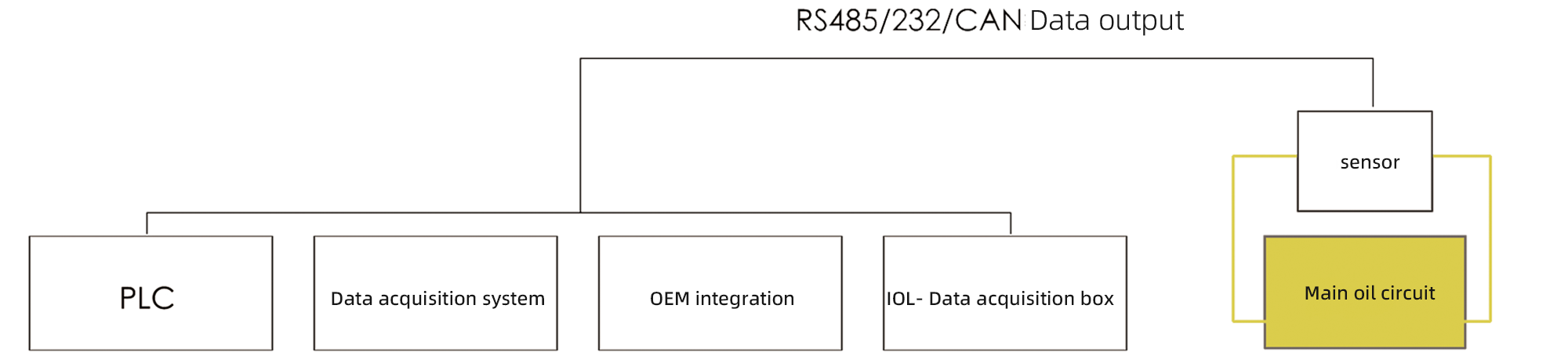

Electrical properties
| Communication interface | Data transmission | power | voltage | weight | Shell material | Cable length | Class of protection |
|---|---|---|---|---|---|---|---|
| 6 core jet jack | RS485/232 | ≤2W | DC 9V～36V | 360G | 316L | 1.5m | IP65 |
The above performance indicators are suitable for conventional industrial site installation and use, encounter complex and harsh outdoor environment and fluid property changes, customized design according to site requirements, you can also contact our sales engineers for recommendations
