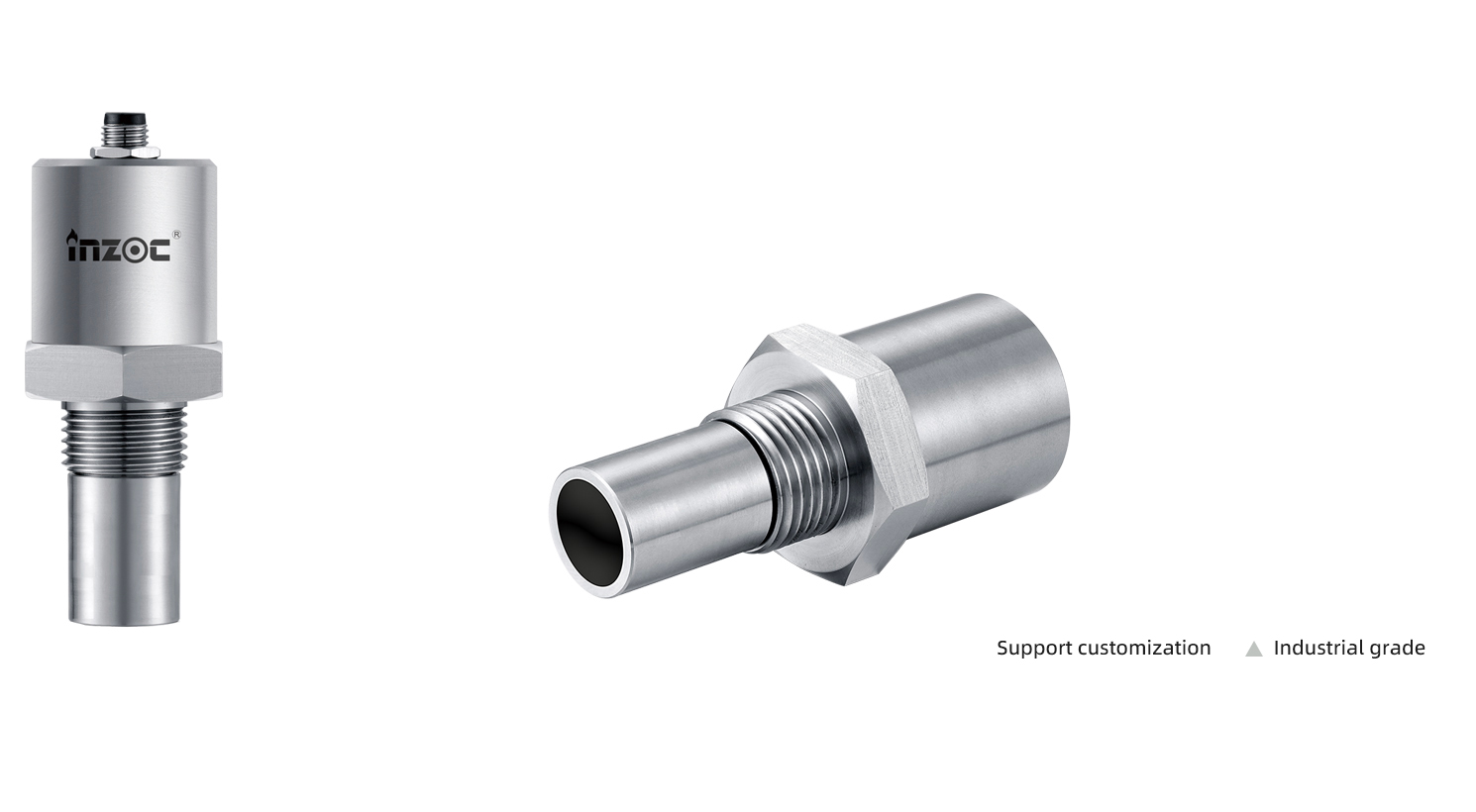

IFM-1series
Adsorption wear particle sensor
The sensor adopts the latest scientific research technology, uses the new circuit design and model algorithm, and fully considers the oil viscosity during the online monitoring process By monitoring the degree of wear of mechanical components in the oil, the sensor continuously records and evaluates the wear state of the equipment, for early equipment Standby fault wear plays an important monitoring role, the probe can distinguish between small particles and micron level magnetic debris, is the early equipment Faults can be detected in a timely manner, improving predictive maintenance data support for equipment.

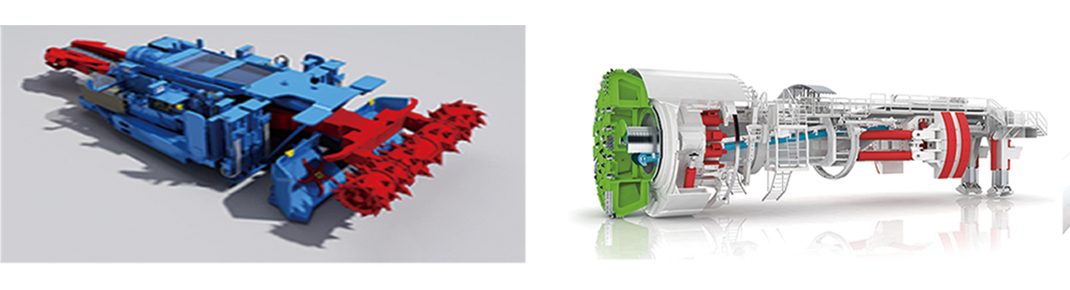

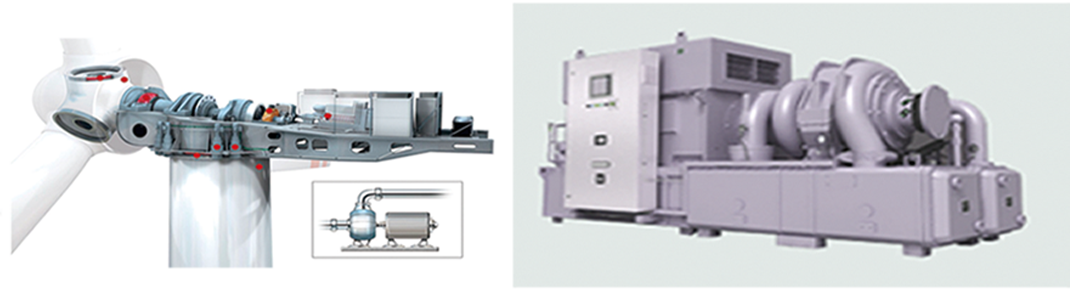

Application field：Steel, petrochemical, shield, power, wind power, large equipment, OEM integration
Applicable oil：Hydraulic oil, turbine oil, diesel oil, insulation oil, transformer oil

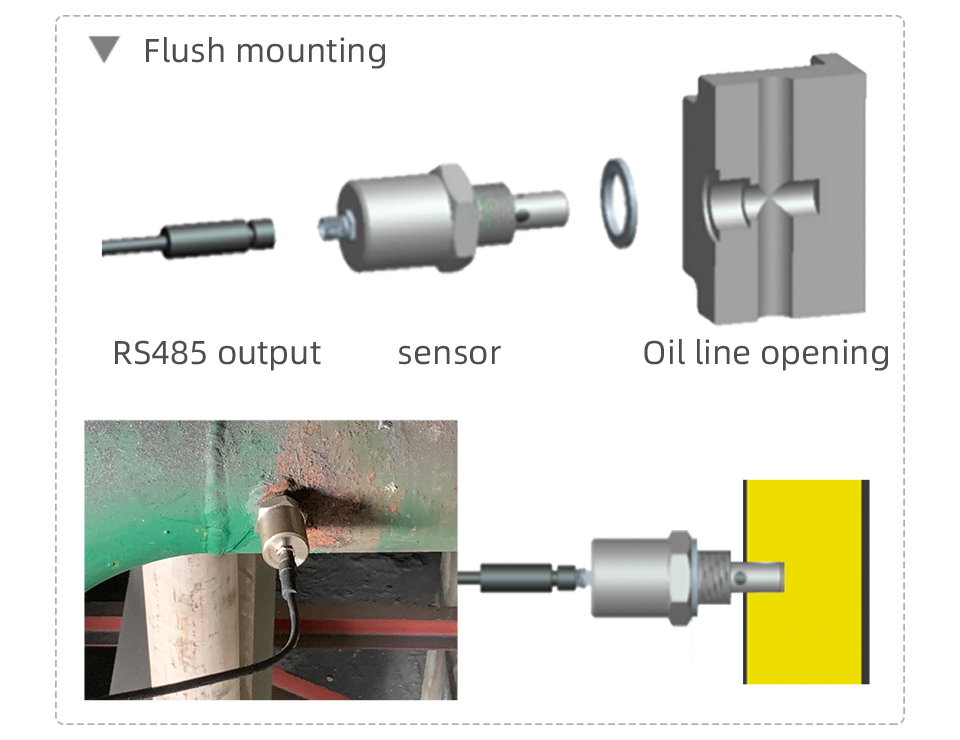

Dimensions and installation

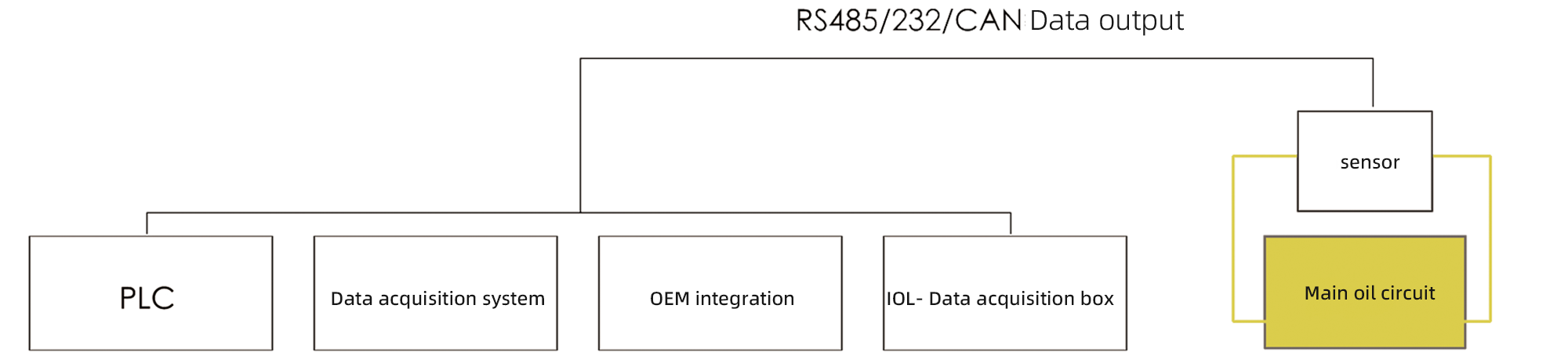

Data transmission mode
Suitable conditions
| Maximum oil temperature | Oil line pressure | Flow rate of oil circuit | Operating ambient temperature | Highest altitude | Maximum vibration | Maximum humidity |
|---|---|---|---|---|---|---|
| +85℃ | 0-3Mpa | ≤1m/s | -20℃-85℃ | 5000m | 2G | 95% |
Specificationr
| Model selection | Fine particle | Rough particle | temperature | Monitoring index |
|---|---|---|---|---|
| IFM-1 | 0-100% | 1-10 | -40～+120℃ | Large particle, small particle, wear index, temperature |
| Resolution | 0.1% | 1 | ±0.5℃ or ±3% |
The above optional indicators and sensors applicable to any of the models can be configured based on actual requirements
The accuracy corresponding to the above performance parameters is the typical value of 25℃. In the case of exceeding the requirements of the system working condition, the data may be biased, and the accuracy will change according to the pressure, flow rate, vibration and other data.
Electrical properties
| Communication interface | Data transmission | power | voltage | weight | Shell material | Cable length | Class of protection |
|---|---|---|---|---|---|---|---|
| 6-core aviation plug | RS485/232 | ≤2W | DC 9V～36V | 300G | 316L | 1.5m | IP65 |
The above performance indicators are suitable for conventional industrial site installation and use, encounter complex and harsh outdoor environment and fluid property changes, customized design according to site requirements, you can also contact our sales engineers for recommendations
