ISL-B series

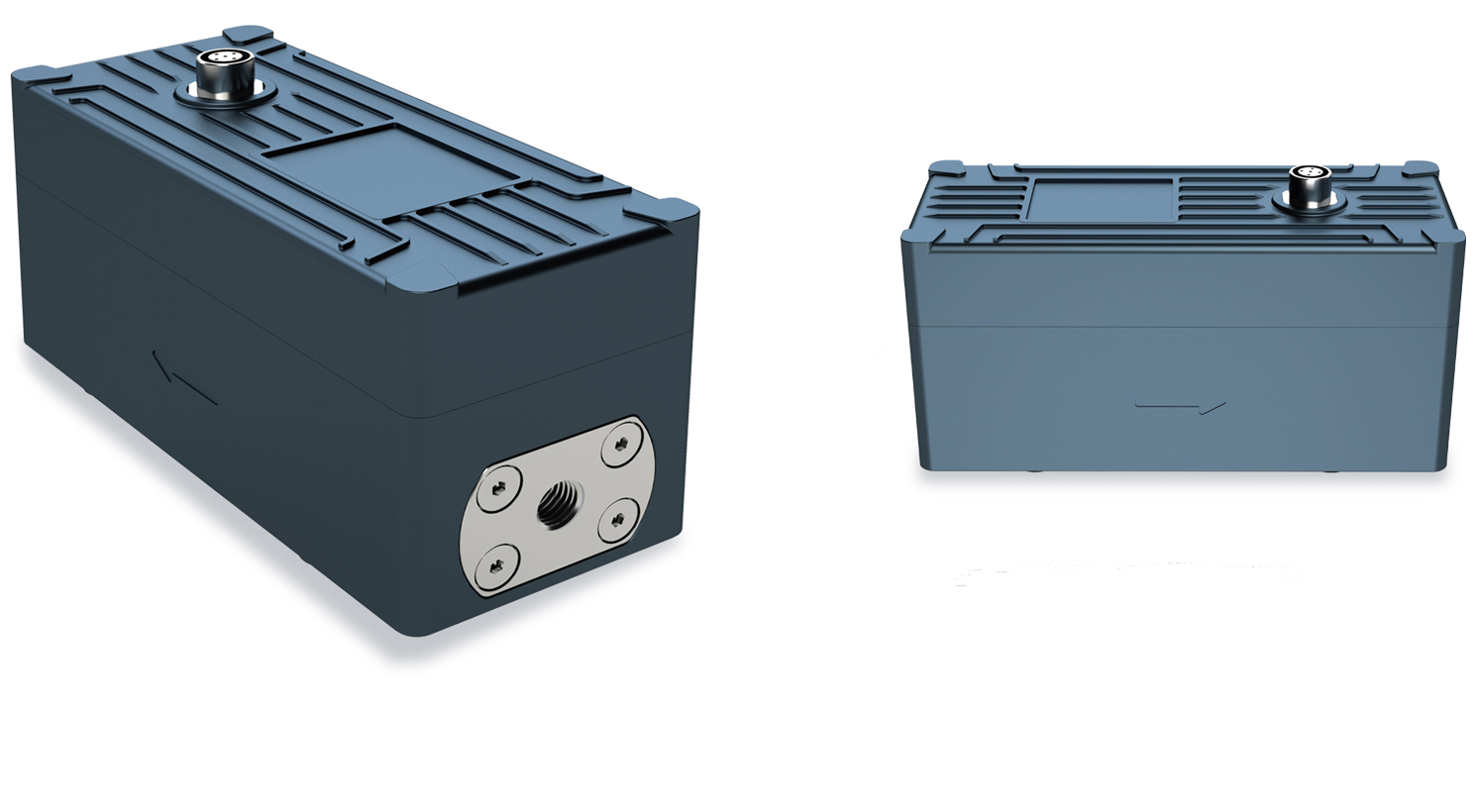

Bypass multi-function oil sensor

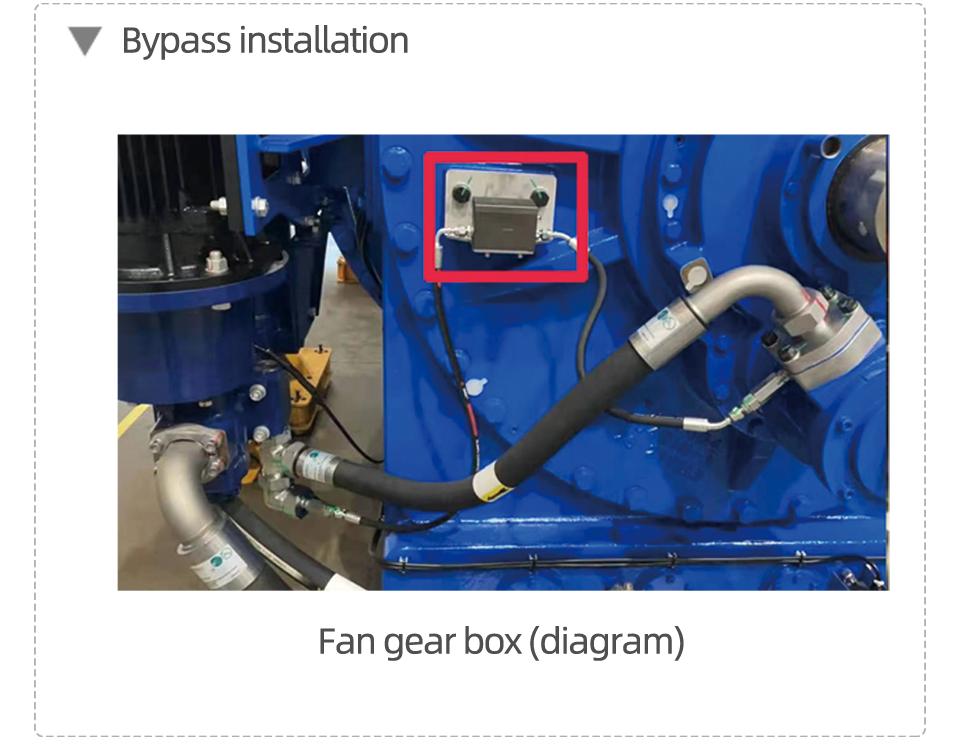

The ISL-B series bypass multi-parameter oil sensor adopts the patented multi-function integrated detection technology and the industry-leading back-end data processing module to form a large-range, high-precision and multi-function oil comprehensive detection sensor, which greatly reduces the online oil monitoring Field installation of repeated holes and installation controls and other industry problems, is the industry's large range, multi-parameter representative products. sense The device can be adapted to the external installation of pipes in different industrial sites, and is suitable for fan gear boxes, power systems, diesel engines, Marine firewood The installation of the oil machine and other systems can complete the detection of viscosity, density, dielectric constant, water content, temperature and wear particles at one time At the same time with the internal model data can be selected: real-time kinematic viscosity, 40℃ kinematic viscosity, 100℃ kinematic viscosity, viscosity finger Number, conductivity and other detection indicators, truly achieve multi-functional, small volume and large integration of comprehensive application multi-functional online monitoring oil Liquid sensor.
Application field：Steel, petrochemical, shield, power, wind power, large equipment, OEM integration
Applicable oil：Gear oil, hydraulic oil, turbine oil, diesel oil
Dimensions and installation
Working Condition
| Maximum oil temperature | Oil line pressure | Flow rate of oil circuit | Operating ambient temperature | Highest altitude | Maximum vibration | Maximum humidity |
|---|---|---|---|---|---|---|
| +85℃ | 0-3Mpa | ≤1m/s | -20℃-85℃ | 5000m | 2G | 95% |
Specificationr
| argument | range | precision | Resolution | CODE |
|---|---|---|---|---|
| Ferromagnetic particle | 30-800um | ≥95% | ferromagnetic≧30um | |
| Non-ferromagnetic particles | 120-1600umm | ≥95% | non-ferromagnetic≧120um | |
| Wear concentration | Real-time value | 1mg/l | 1mg/l | M3 |
| 24H total number of particles | Real-time value | 1 | 1 | |
| Flow detection | Real-time value | 1ml/min | 1ml/min | |
| Moisture content | 0-10000ppm | ±10% | 1ppm | W2A |
| Saturation | 0-1aw | ±0.04 | 0.01aw | W2A |
| Moisture content | 0-100% | ±0.03（Maximum range） | 0.01% | W2B |
| Oil quality | 1-80 | ±3% | 0.01 | |
| Dynamic viscosity | 10-1200CP | ±3% | 0.01cp | |
| temperature | -20℃-85℃ | 0.1℃or ±3% | 0.01℃ | V4 |
| density | 600 ～1500 kg. m³ | ±3% | 0.01kg. m³ | |
| Matching flange: SAE\DN\ ship mark (optional） | ||||
| Options: real-time kinematic viscosity, V40 viscosity, V100 viscosity, viscosity index, conductivity | ||||
According to the field needs, can be matched with the model group number, such as monitoring gear oil, can be combined with the codeISL-2Z/M3/W2B/V3
The accuracy corresponding to the above performance parameters is the typical value of 25℃. In the case of exceeding the requirements of the system working condition, the data may be biased, and the accuracy will change according to the pressure, flow rate, vibration and other data.
Electrical properties
| Communication interface | Data transmission | power | voltage | weight | Shell material | Cable length | Class of protection |
|---|---|---|---|---|---|---|---|
| 6 core jet jack | RS485/232 | ≤5W | DC 9V～36V | 1000G | 316L | 1.5m | IP65 |
The above performance indicators are suitable for conventional industrial site installation and use, encounter complex and harsh outdoor environment and fluid property changes, customized design according to site requirements, you can also contact our sales engineers for recommendations
