IBQ Series

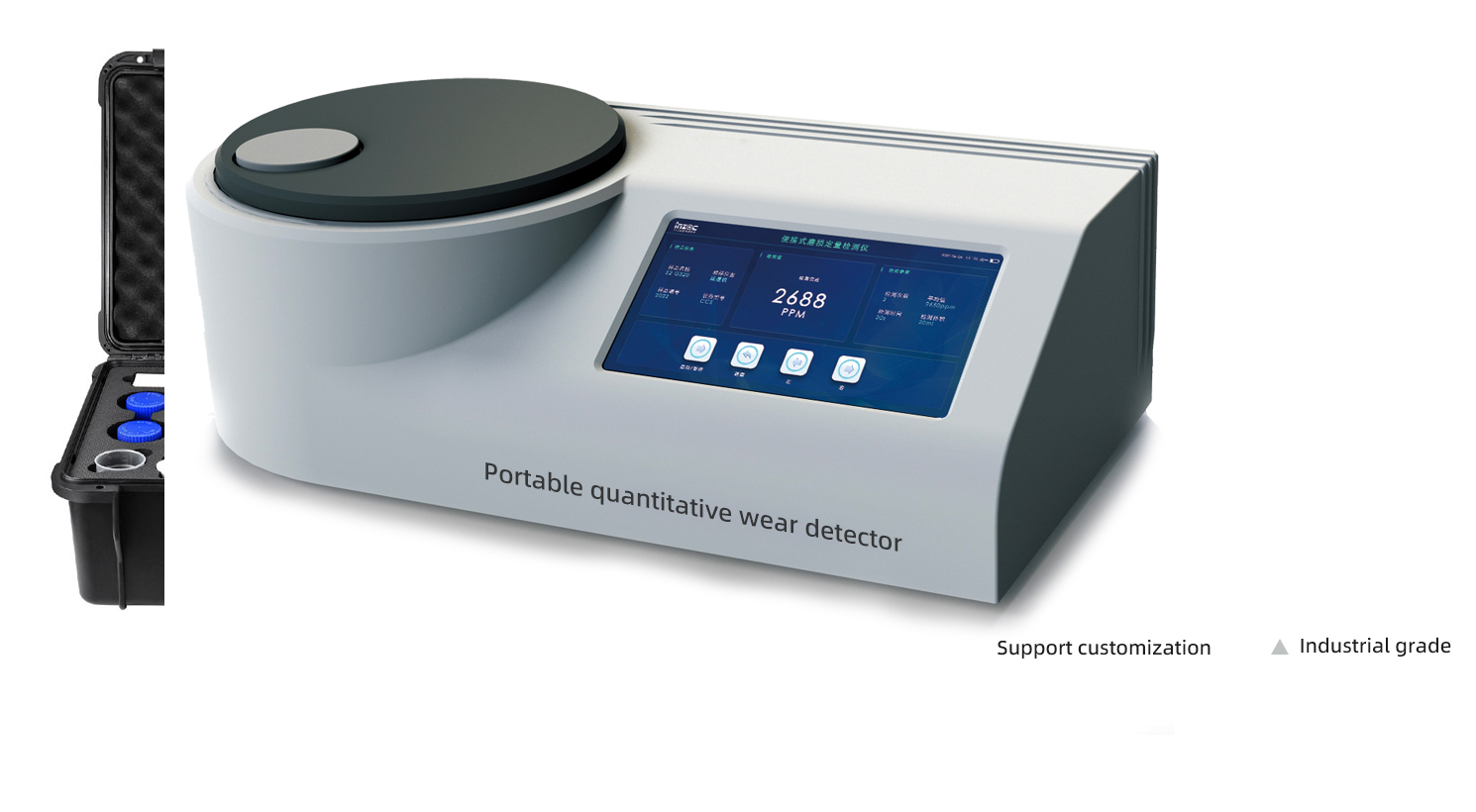

Portable quantitative wear detector
Products based on the principle of electromagnetic induction, the device is designed with a sensitive electromagnetic coil, when magnetic particles pass through the coil, the oil The ferromagnetic particles will change the fixed magnetic field of the sensor, and according to the data changes coupled with the algorithm model of smart matches, the magnetic field changes can be compared with The magnetic particle content establishes a directly readable relationship, and the product is extremely sensitive to abnormal wear particles included in the oil. It can make quick and effective judgment on the equipment wear of large equipment in industrial field, and is suitable for hydraulic oil, gear oil, grease and other industries Oil.
Application field：Steel, petrochemical, shield, power, wind power, large equipment
Applicable oil：Hydraulic oil, turbine oil, diesel oil, gear oil
Detection index：Wear quantitative analysis (PPM\PQ), viscosity, moisture content, density, oil quality
Transformer oil, turbine oil, insulation oil, etc；
Hydraulic oil, gear oil, oil film oil, turbine oil, etc；
Turbine oil, hydraulic oil, gear oil, etc；
Gearbox oil, oil fluid oil；
Hydraulic oil, gear oil, transmission fluid, wheel oil, etc；
Hydraulic oil, gear oil, transmission oil, transfer box oil, etc；

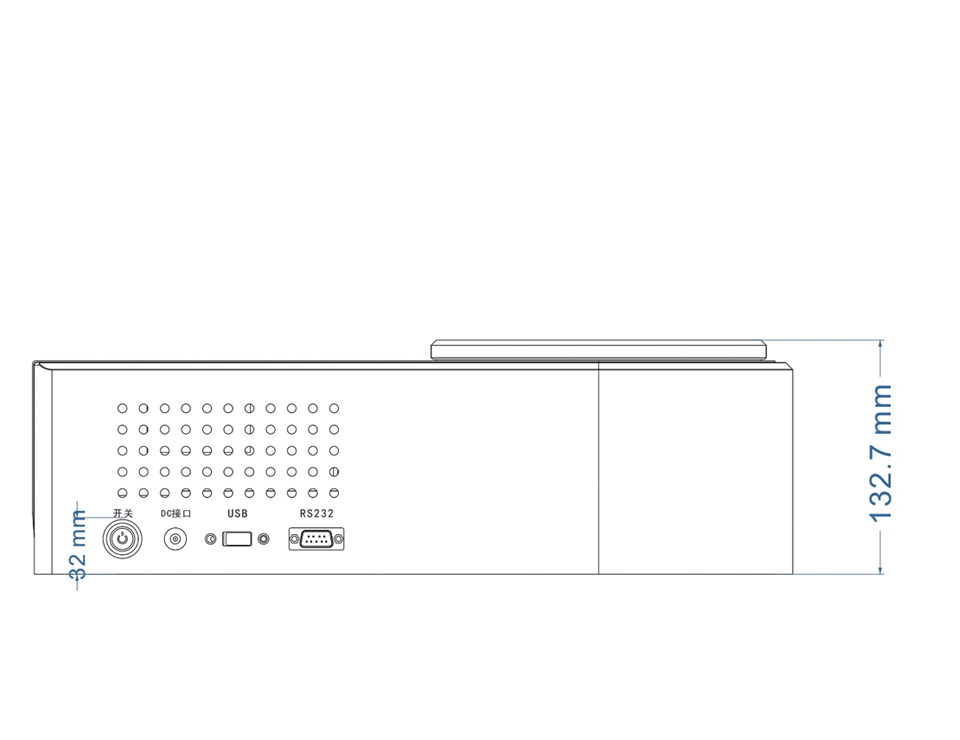

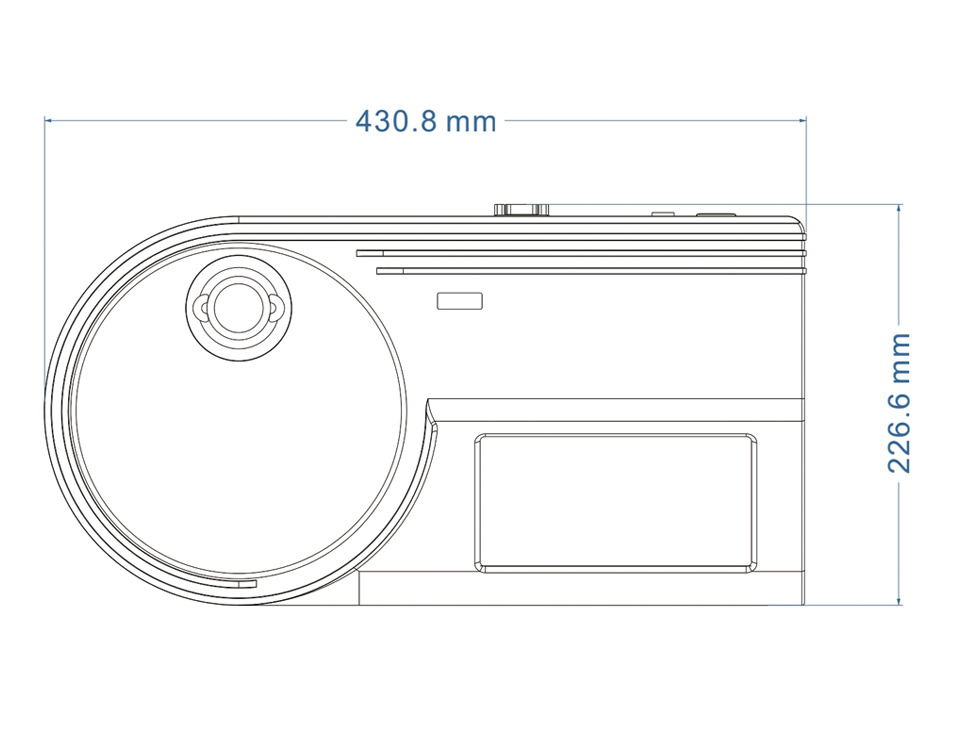

Structure size
Working Condition
| Storage temperature | Power source | weight | Operating ambient temperature | Serial port | Display screen | Working environment |
|---|---|---|---|---|---|---|

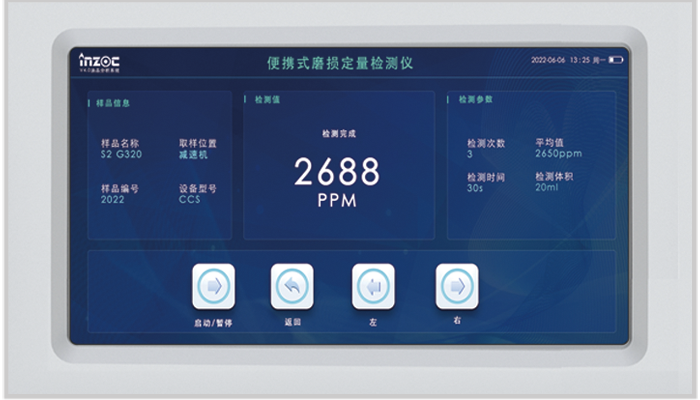

| -20-50℃ | AC220 | 4KG | 10℃-40℃ | USB | Seven inches | non-condensing |
PQ mode/ PQ pattern
| repeatability | Resolution | Test time | Measurable minimum | Detection range of abrasive particles | Measuring range | |
|---|---|---|---|---|---|---|
| 1PQ or 1% | 1PQ | 5 seconds | 5PQ | 1um | 0-15000PQ | |
PPM pattern
| repeatability | Resolution | Test time | Measurable minimum | Detection range of abrasive particles | Measuring range | |
|---|---|---|---|---|---|---|
| 1%（RSD） | 1PPM | 3 seconds | 1PPM | 1um | 0-15000PPM | |
Selection index
| Model selection | Monitoring index | range | precision | Resolution |
|---|---|---|---|---|
| IFV-7 | Dynamic viscosity | High 200-1200CP, low 10-500CP | ±3% | 0.1cp |
| density | 600～1500kg.m³ | ±3% | 0.01kg.m³ | |
| temperature | -35~+85℃ | 0.1℃ or ±3% | 0.1℃ | |
| Trace moisture | 0-10000ppm | ±10% | 1ppm | |
| Saturation | 0-1aw | ±0.04 | 0.01aw | |
| Moisture content | 0-100% | ±3% | 0.01% | |
| Oil quality | 1-80 | ±3% | 0.01 |
Contact us for detailed product parameters
