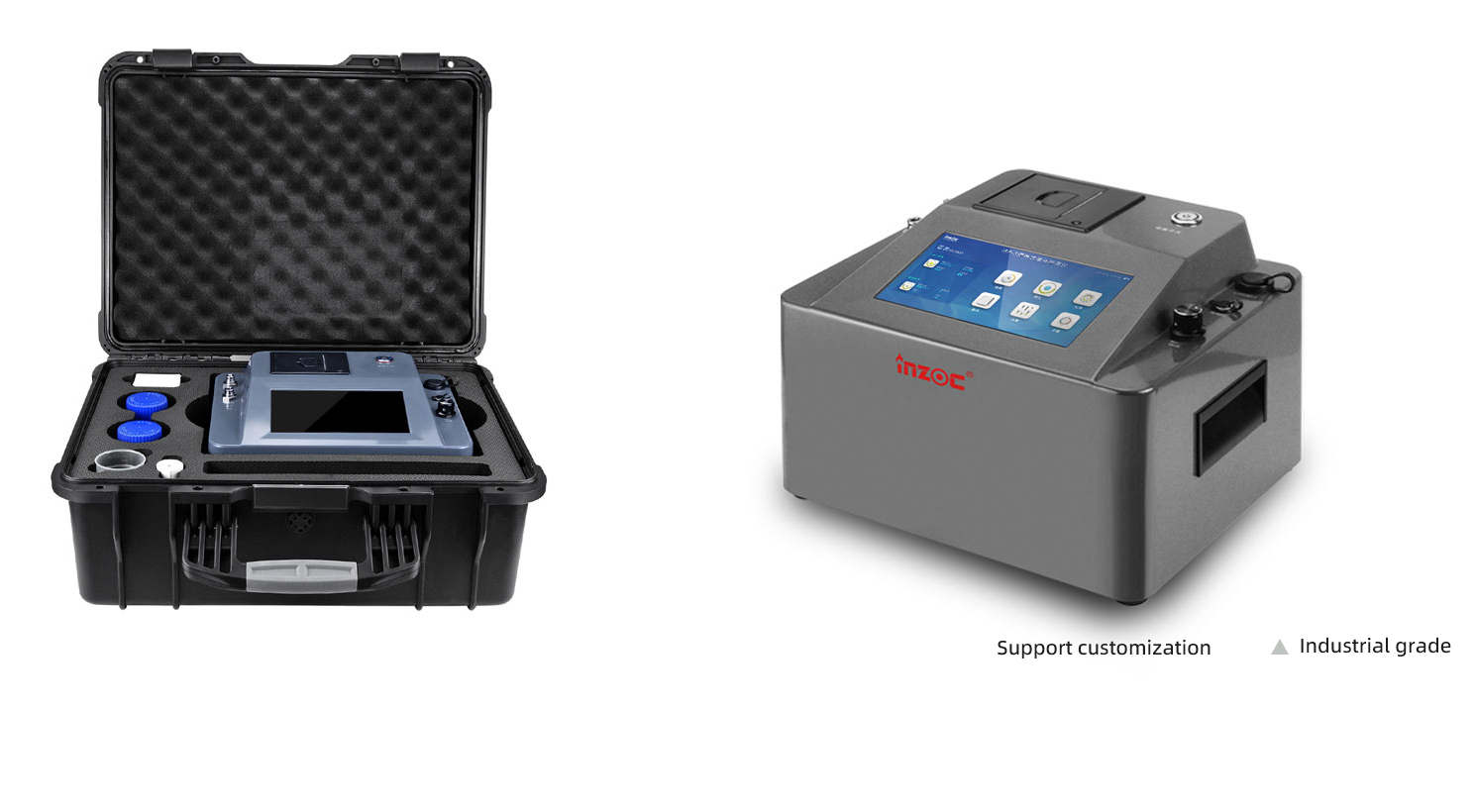

IBF series
Portable oil detector
Function: oil life assessment \ oil pollution particle distribution analysis \ oil wear state analysis \ oil aging state \ water content analysis
IBF series portable oil analyzer adopts advanced sensing and detection technology to comprehensively detect various aging indexes in oil products, and can quickly and digitally display pollution degree classification, wear classification, viscosity moisture and other indexes. The unique design can effectively eliminate the impact of bubbles and moisture in oil on the test results. The instrument can be widely used in aviation, aerospace, electric power, petroleum, chemical industry, transportation, port, metallurgical machinery, automobile manufacturing and other fields, to detect hydraulic oil, lubricating oil, transformer oil (insulation oil), turbine oil (turbine oil), gear oil, engine oil, aviation kerosene, water-based hydraulic oil and other oils, and comprehensively monitor the operation health of the equipment.
Application field：Steel, petrochemical, electric power, machinery, laboratories, universities, research institutions
Applicable oil：Gear oil, hydraulic oil, turbine oil, diesel oil, insulation oil
Data analysis
It can detect the aging indexes of oil products in real time
Data preservation
To achieve data preservation and analysis, report generation
Independent editing of inspection report information

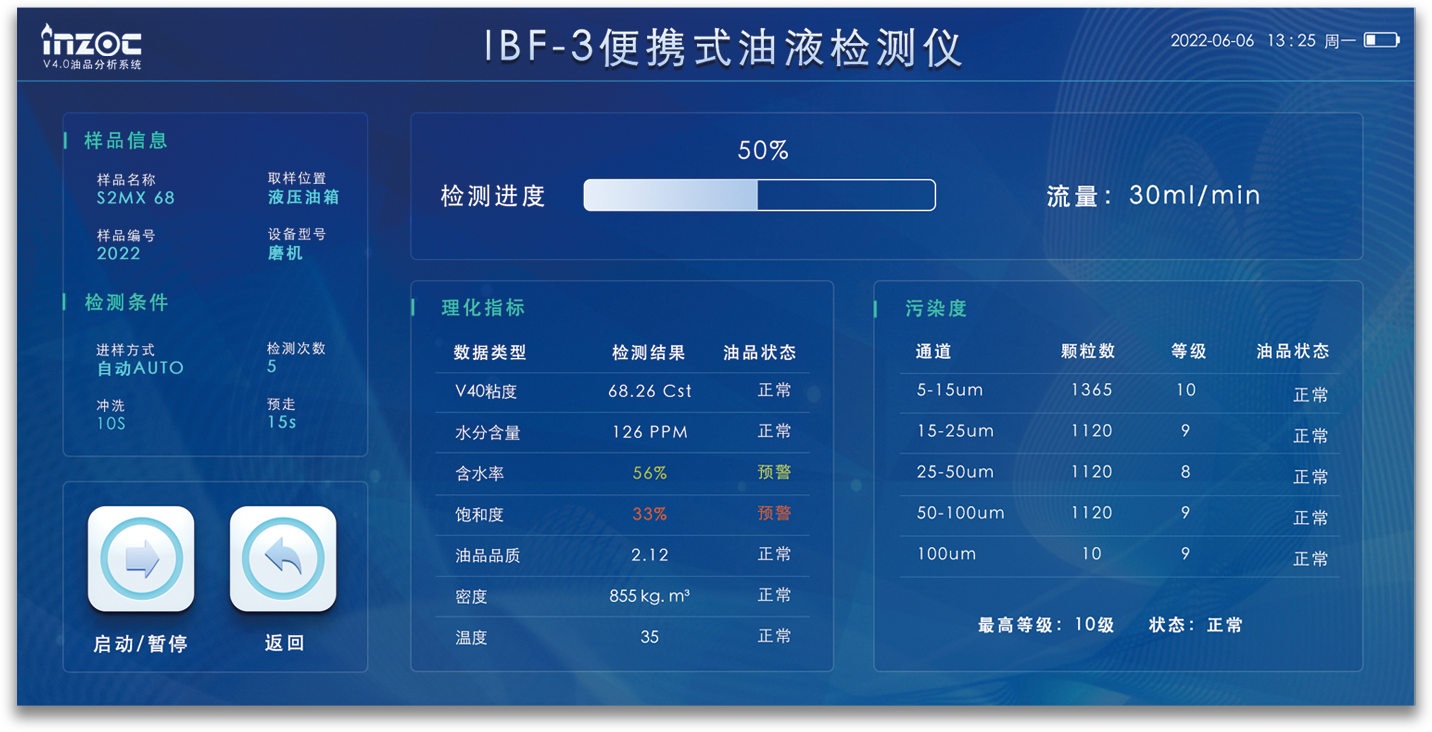

data visualization
Oil pollution particle distribution analysis
Oil wear state analysis
Oil aging state, water content analysis
Building block combination and collocation
Working Condition
| Maximum oil temperature | Sample viscosity | In-line sampling pressure | Screen size | Battery powered | Report output | Data output |
|---|---|---|---|---|---|---|
| +85℃ | 0-1200cp | 0-40Mpa（custom） | Seven inches | 6H | Print support | USB/COM |
Technical parameter
| Detection index | Detecting velocity | Injection method | Sampling accuracy | |
|---|---|---|---|---|
| IBF-3V | V40 viscosity, density, oil quality | 1-80ml/min | Manual/automatic | 10ml |
| IBF-3VW | V40 viscosity, density, oil quality, moisture content | |||
| IBF-3MV | Ferromagnetic particles, non-ferromagnetic particles, wear concentration, V40 viscosity density, oil quality, moisture content, moisture content |
|||
| IBF-3JV | Pollution level, total number of particles, V40 viscosity, density, oil quality, water content |
The test result of the offline test equipment will be affected by the tester and test method as well as the contamination degree of the sample. We recommend that the sample test be carried out in strict accordance with the test procedure and use standard supporting products
Optional accessories
| Part name | Detection range | precision | Resolution |
|---|---|---|---|
| V40 viscosity | 10-1200cp | ±3% | 0.01cp |
| Moisture content | 0-10000ppm | ±10% | 1ppm |
| Moisture content | 0-100% | 3% | 0.01% |
| Wear particle | 30-800um | The detection rate was 95% | Ferromagnetic ≧30um, non-ferromagnetic ≧30um120um |
| Oil quality | 0-100 | 3% | 0.01 |
| Degree of pollution | 1-600um | ±0.5 grade | 1um |
| density | 600 ～1300 kg. m³ | ±3% | 0.01kg. m³ |
The test result of the offline test equipment will be affected by the tester and test method as well as the contamination degree of the sample. We recommend that the sample test be carried out in strict accordance with the test procedure and use standard supporting products
