Ship, port machinery oil diagnosis scheme
Marine engine, diesel engine, grab machine, crane gearbox
Real-time oil diagnosis linkage analysis system

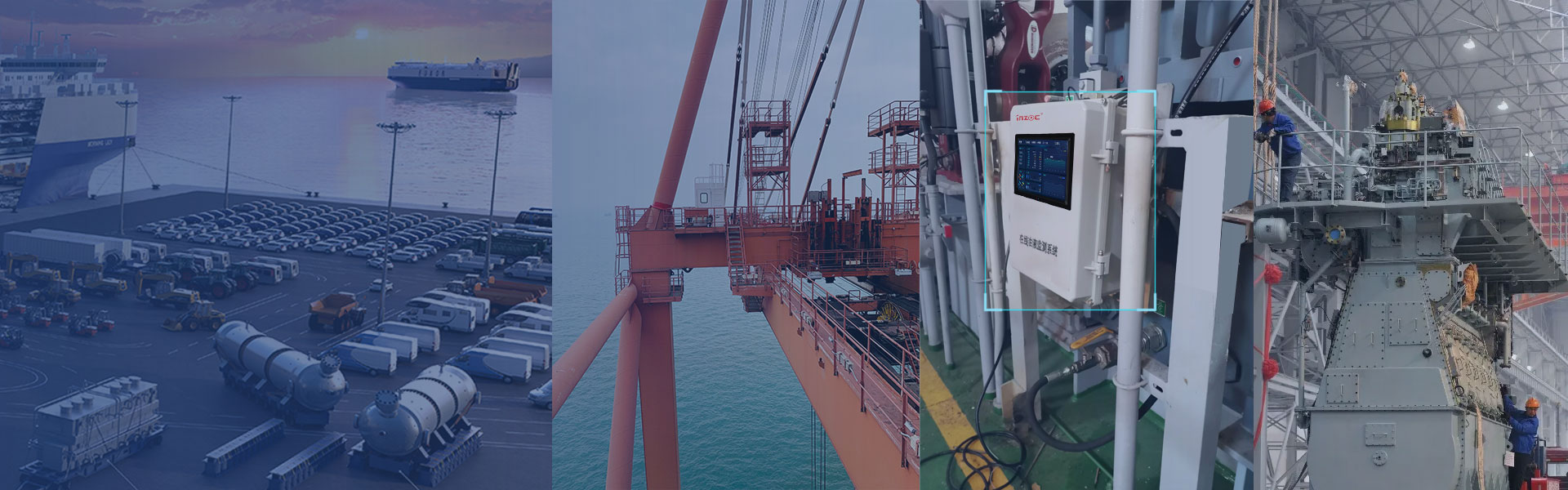

The gear box of the ship grabbing machine adopts 320 high-viscosity gear oil, which will reach a viscosity of more than 1000cp at low temperature. Conventional viscosity sensors cannot collect data, and high-range sensors are needed to meet the range requirements. The equipment adopts temperature control program to obtain the internal temperature of the fuel tank in real time. When the equipment is monitored, the online monitoring system starts to work, and the built-in booster pump starts to pump oil, which can avoid the ineffective operation of the equipment, greatly increase the life, reduce the invalid data acquisition when the gear box is not running, and realize intelligent monitoring.
Program advantage
Safe and reliable
Salt spray proof design, can be used safely in high humidity, high corrosion environment.
High fit
Suitable for different ship label flange conversion, quick installation on site
Rapid deployment
Support local LAN, cloud services, local RS485 data transmission mode.
System Three deployment systems
Bypass monitoring
-On-line monitoring system
The online oil monitoring system adopts the form of main road opening or interface switching, such as the need to monitor the rolling mill oil road, select a suitable position in the main return pipeline of the rolling mill oil road, introduce the oil to the interface of online oil monitoring, and realize the oil circuit circulation. Data collection, data analysis, data display (localization), and data upload cloud servers can be integrated, truly saving worry, money and effort, and monitoring data is stable and reliable.
Main road monitoring
-Multi-point acquisition sensor
In different equipment, there are many key data points, and the method of multi-point collection and single point processing can greatly save costs. During installation, holes can be directly made in the system pipeline, and the sensor can be embedded in the pipeline. The sensor is designed to resist corrosion, impact, pressure and high stability, and can collect multi-point oil aging information during system operation. Discover unexpected faults such as water intake and pollution in time, quickly locate the fault location, and achieve accurate collection.
Main road monitoring
-Multifunctional sensor
The main road multi-function monitoring is suitable for the transformation of the lubrication system and the use of large-area deployment. The sensor is installed by using flange transfer or pipeline transformation on the lubrication pipe road. The sensor is suitable for the installation of a variety of different standard flanges and different pipe diameters, and the internal integration of a variety of monitoring indicators. The data can be uploaded and displayed in a centralized mode to maximize the economic effect.
Customer case
They all trust our oil monitoring technology
A fleet engine system
Provide reliable moisture monitoring solutions
Smartmatch Technology provides a customized moisture monitoring system for the diesel engine system of a fleet, which pays real-time attention to the moisture content in the oil, and the data acquisition reaches the second-level response speed, ensuring the operational reliability of the ship in real time.
Dalian Heavy Industry
Oil monitoring of gear box of boat grab
It provides a reliable and intelligent oil monitoring solution for the gear box of the ship grab machine produced by Dalian Dazhong, innovatively solves the ineffective data interference of high-viscosity oil products at low temperatures, collects temperature and vibration signals outside the equipment, and realizes the intelligent linkage of the monitoring system.
711 Research Institute of China State Shipbuilding Corporation Limited
Provide reliable moisture monitoring solutions
Smartmatch Technology provides a customized moisture monitoring system for the diesel engine system of a fleet, which pays real-time attention to the moisture content in the oil, and the data acquisition reaches the second-level response speed, ensuring the operational reliability of the ship in real time.
China Merchants - Ma Wan Smart Port
Oil monitoring of gear box of boat grab
It provides a reliable and intelligent oil monitoring solution for ship engine gearboxes in ports, innovatively solves the ineffective data interference of high-viscosity oil products at low temperatures, collects temperature and vibration signals outside the equipment, and realizes the intelligent linkage of the monitoring system.
