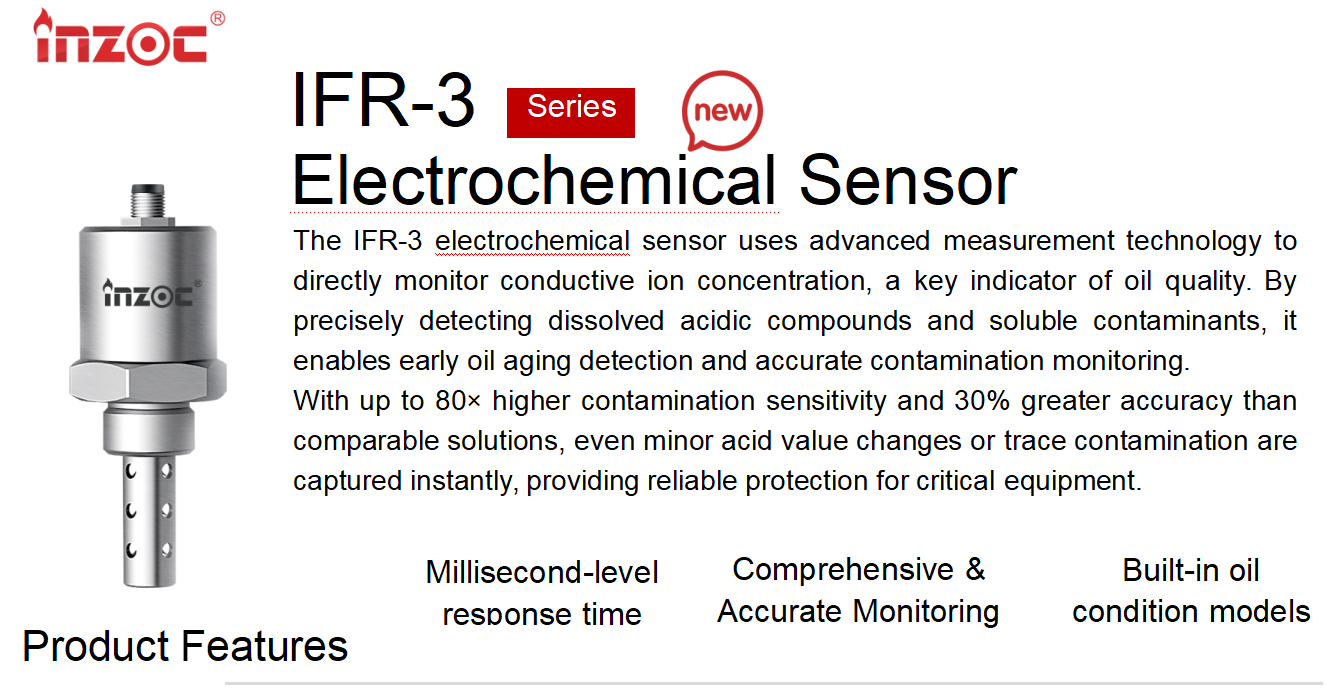

The IFR-3 electrochemical sensor uses advanced measurement technology to directly monitor conductive ion concentration, a key indicator of oil quality. By precisely detecting dissolved acidic compounds and soluble contaminants, it enables early oil aging detection and accurate contamination monitoring. With up to 80× higher contamination sensitivity and 30% greater accuracy than comparable solutions, even minor acid value changes or trace contamination are captured instantly, providing reliable protection for critical equipment.

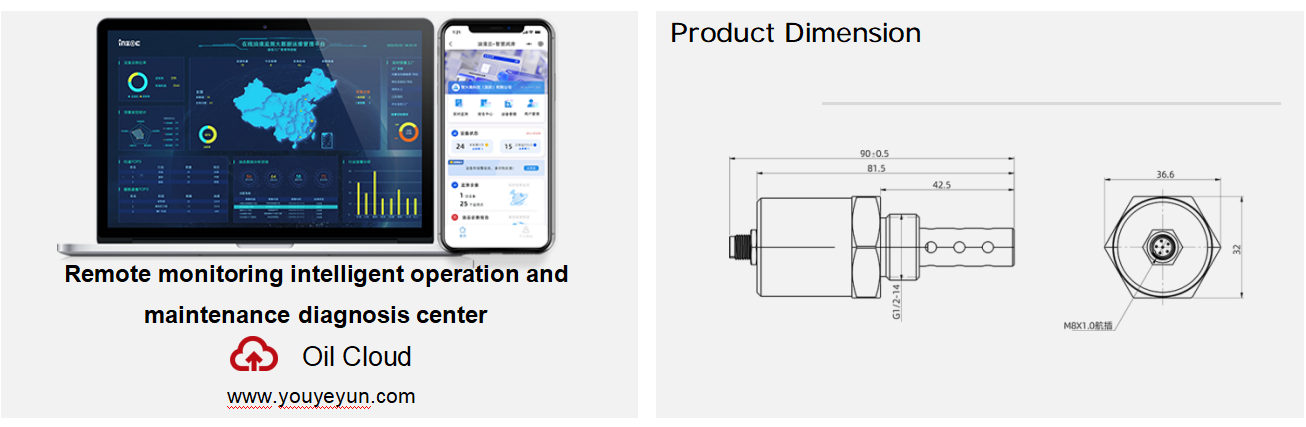

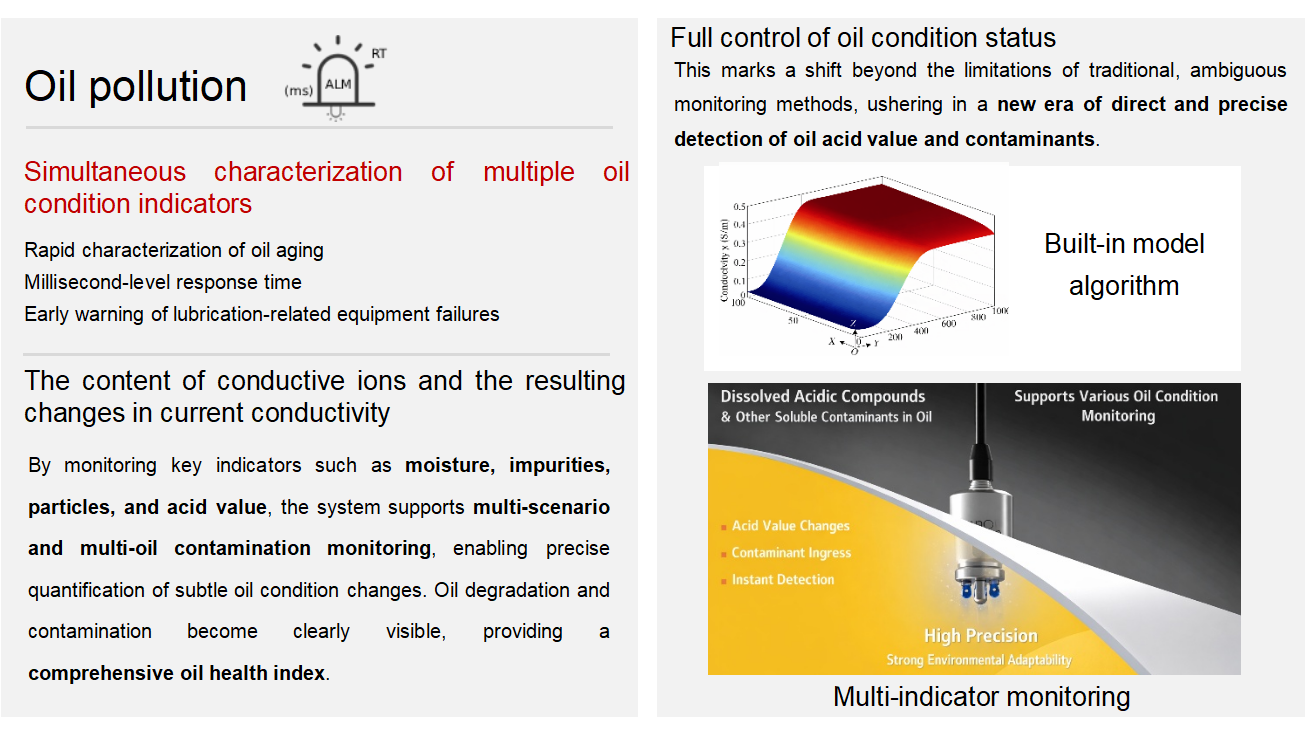

IFR-3 Electrochemical Sensor Product Features
IFR-3 Electrochemical Sensor Product Features

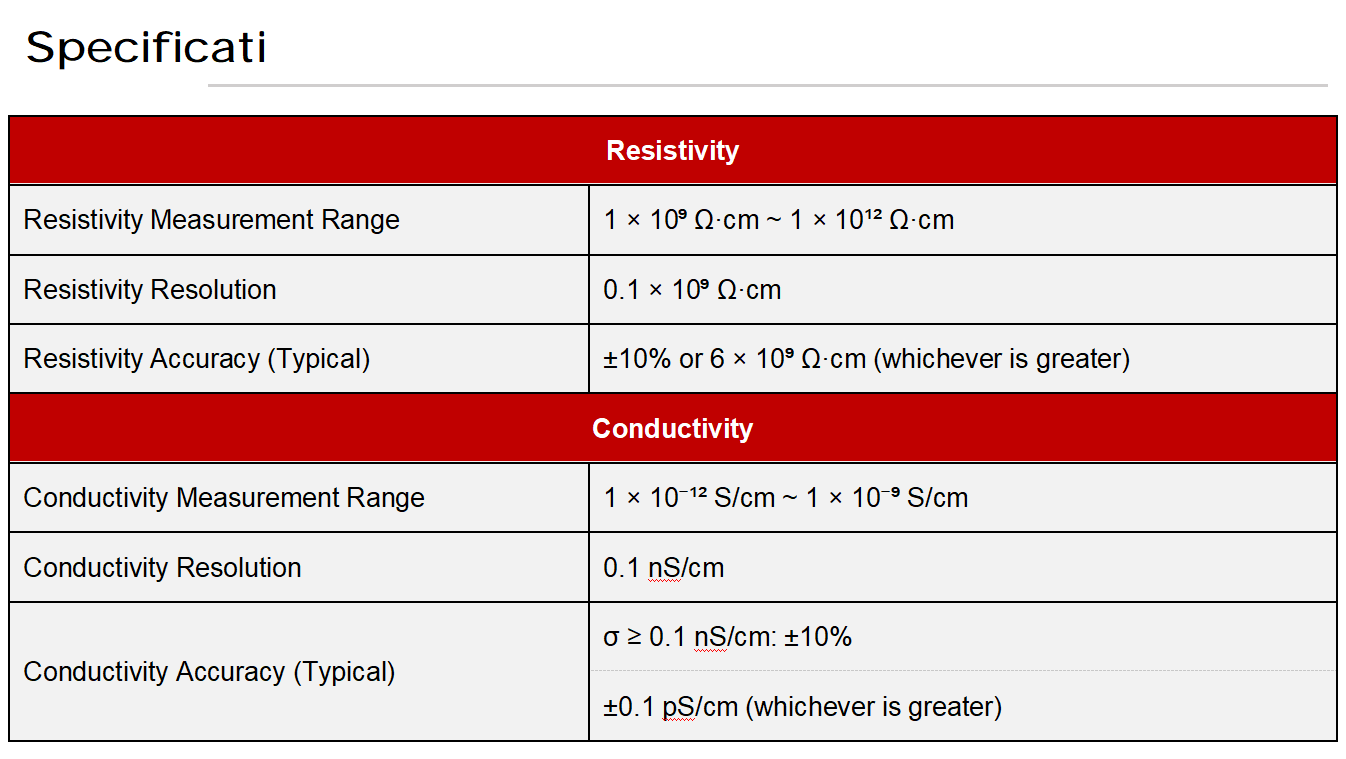

IFR-3 Electrochemical Sensor Technical Specifications

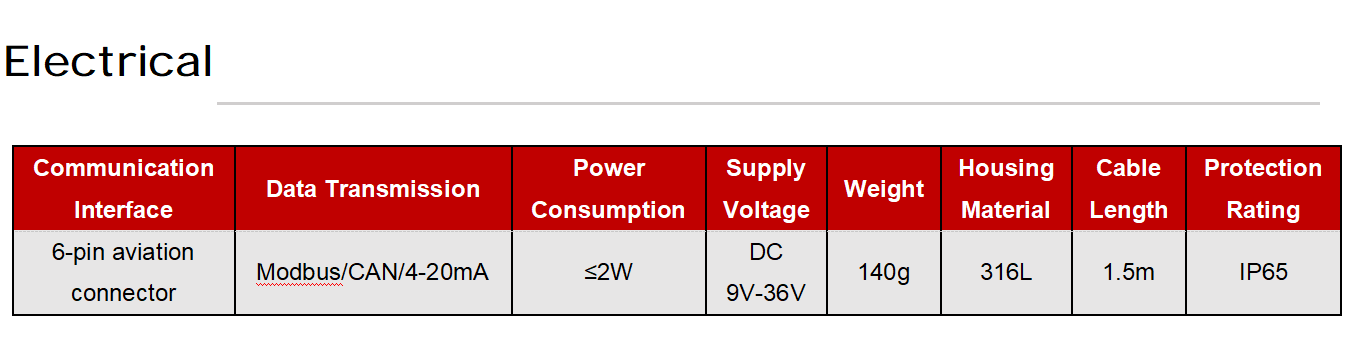

IFR-3 Electrochemical Sensor Electric Performance

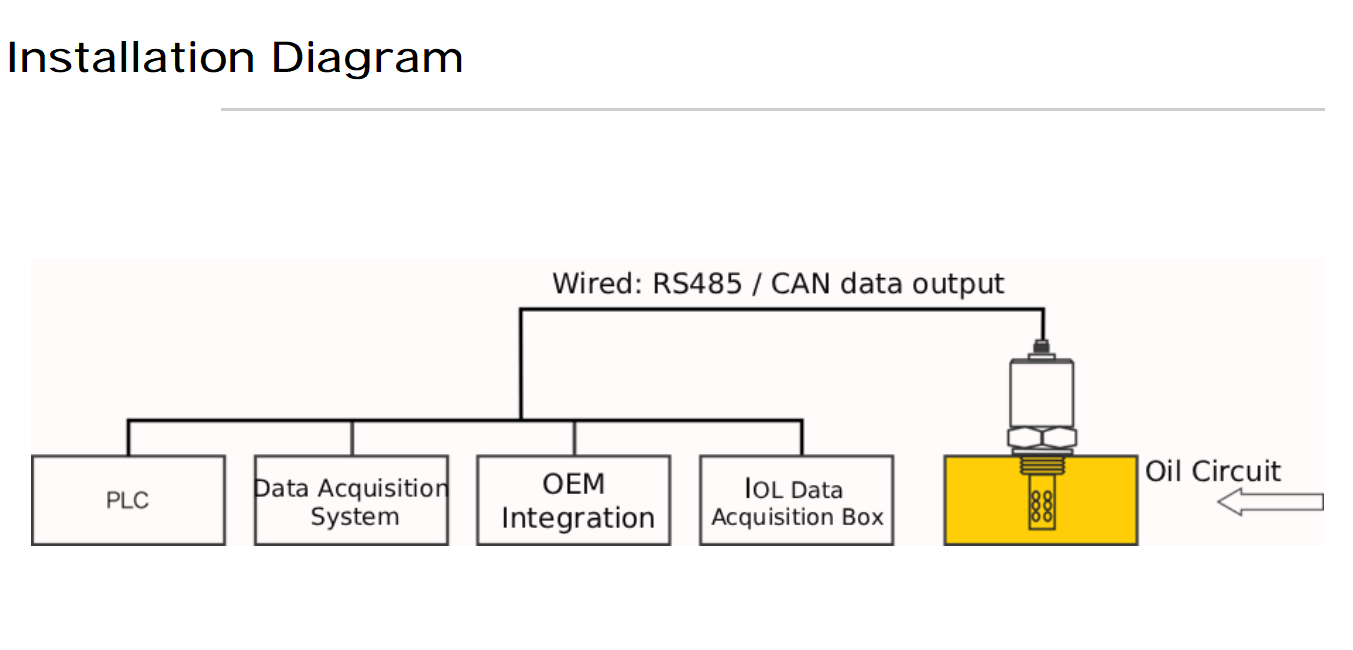

IFR-3 Electrochemical Sensor Installation Diagram

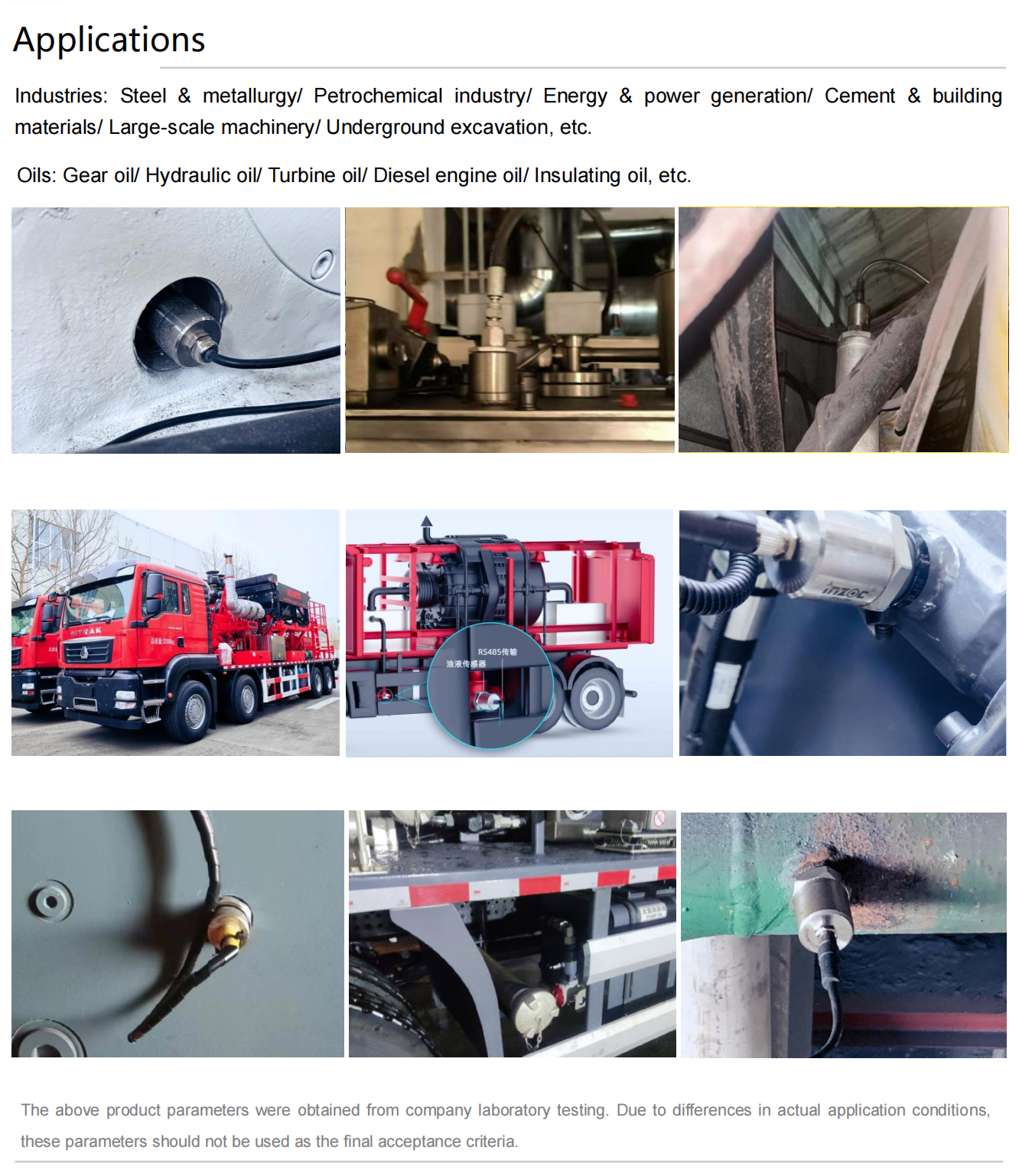

IFR-3 Electrochemical Sensor Applications
